K1EL Systems LLC

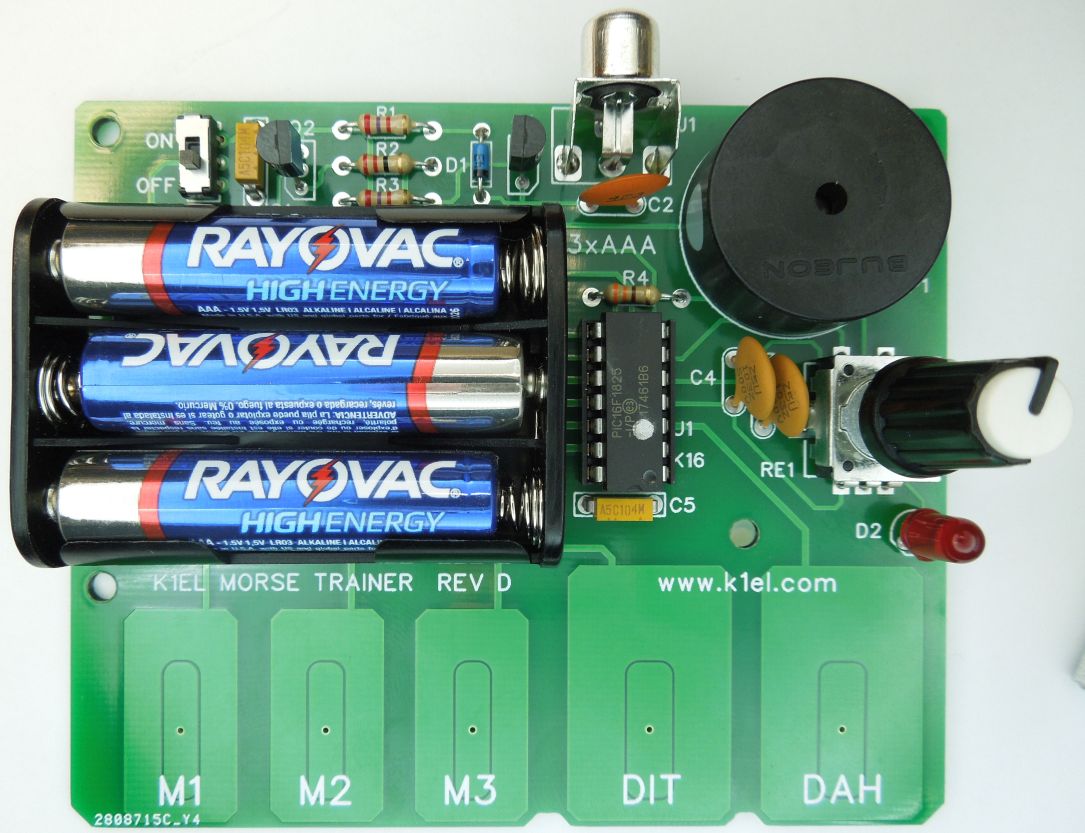

The MTB was designed to be a low cost educational platform for learning and practicing Morse code. Everything the student needs is on the board including touch pad inputs. Optimal touch paddle sensitivity is maintained by an auto-calibration algorithm. The MTB is implemented in a Microchip PIC16F1825 microcontroller and utilizes a special version of the K1EL K16 keyer core which provides a wide range of features. Setup commands are directly entered on the paddles in Morse code. All settings and messages are stored in nonvolatile memory so that they are preserved when the keyer is turned off. The K16 keyer core has many original features not found in other keyers. Version 2 has several improvements to make it easier to assemble and configure. An on/off switch replaces the power jumper and a diode switch replaces the output configuration jumper.

Morse Tutor Features








Quantity pricing available for club or classroom builds

MTB Documentation

MTB User Manual rev 2.0b
(Edits for fig 5 and added solder battery holder step)

Important Addendum for 2nd MTB Kitting
Instructions for power switch installation



MTB User Manual rev 1.1
(Replaced by Version 2)
