We have received many requests for a complete PaddleStick kit. In response, we now offer the PS2B which combines a PaddleStick with an interface board and weighted base. It's is an easy assembly that takes about an hour. The PS2B is a fun accessory that you can use to practice Morse code without having to invest in an expensive paddle set. The base interface card provides a speed pot, message pushbuttons, and solid state relay output that can drive both modern and grid block vacuum tube transmitters. A touch paddle is built into the PaddleStick board and is coupled to an on-board keyer chip utilizing our powerful K16 keyer core.
Also included is an on board sidetone speaker so you can hear what you are sending with adjustable sidetone frequency. The K16 keyer IC can be bypassed if you want to use your PaddleStick just as a touch paddle. The kit includes all parts except solder and a nine volt battery.
PaddleStick Features
- Speed range: 5 - 59 WPM
- Integrated Touch Paddle
- Messages: 236 letters/cmds in 12 slots
- Embedded commands
- Nonvolatile EEPROM message storage
- Message Stacking
- Two user setups
- Separate callsign storage slot for each user
- Power supply voltage monitor
- Dynamically allocated message memory
- Backspace allowed on message entry
- Speed pot with on/off switch
- Bug, Iambic A or B, and Ultimatic keyer modes
- Solid state relay keying output with RCA jacks
- External paddle input
- Four pushbuttons for commands and messages
- 40 easy to use commands
- Standard nine volt battery holder
- High quality, powder coated, weighted steel base

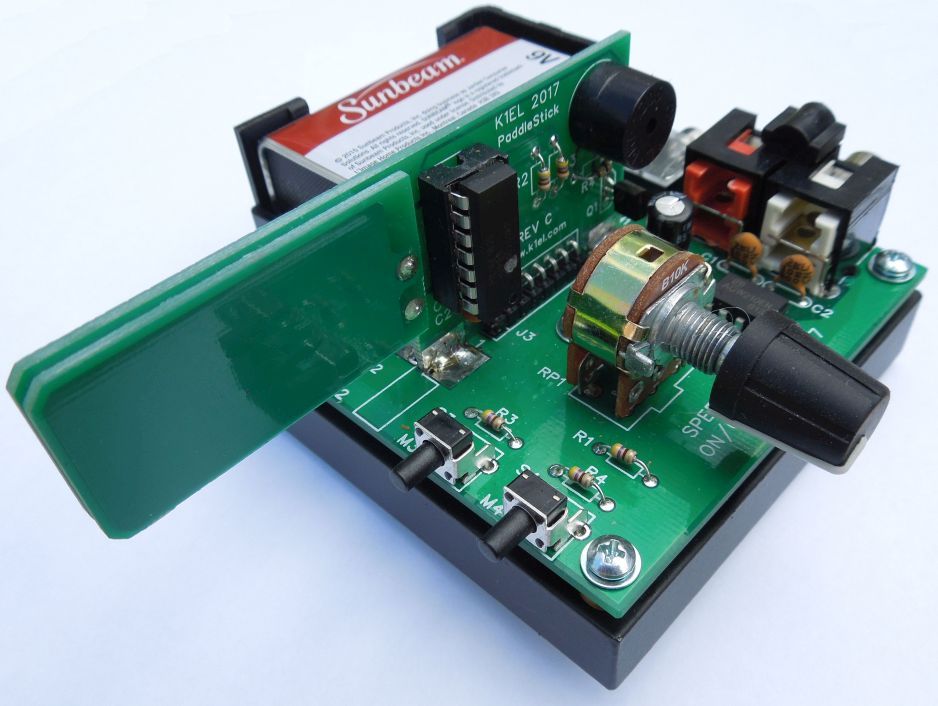

PaddleStick CW Keyer with Base Kit

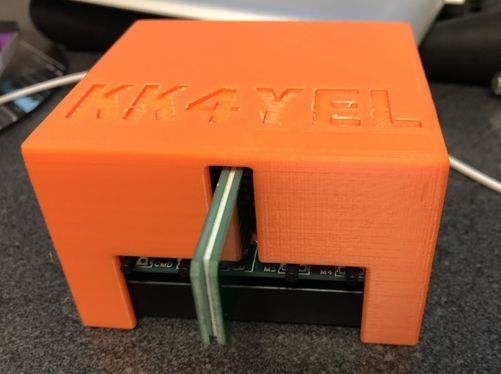

DIY ! Here's a very nice 3D printed cover for the PS2B designed by KK4YEL
